Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 50A Adj. Therm. Adj. Mag.

Trade Discount 25%

SKU: P160F2350TM

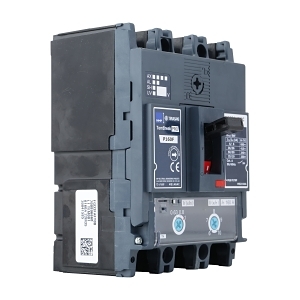

Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 50A Adj. Therm. Adj. Mag.

$413.90 List price: $549.60

+ −

30 Days Return Delivery Options

Weight: 1.000 kg

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 50A Adj. Therm. Adj. Mag.

Brand: NHP

SKU: P160F2350TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 50A

Technical Specifications

Rated Current: 50 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 36 kA
Rated Service Short Circuit Breaking Capacity: 36 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 32-50 A
Instantaneous Protection Adjustment Range: 300-600 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Suitable for Isolation: Yes
Rated Short Circuit Breaking Capacity (ICU): 6 kA
Rated Impulse Withstand Voltage: 8 kV
Over Voltage Category: IV
Power Loss: 22.5 W
Mechanical Life: 50,000 cycles
Electrical Life: 30,000 cycles
Dimensions (H x L x W): 130mm x 95.5mm x 90mm
Weight: 1 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 36 kA for enhanced safety.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Manufacturing facilities, machinery protection
Commercial: Electrical distribution in commercial buildings
General: Any application requiring reliable circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed to operate efficiently in a wide range of temperatures and conditions.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 50A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
