Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Terasaki TemBreak PRO MCCB 160 Frame 50kA 3P 100A Basic Electronic

Trade Discount 25%

SKU: P160N23100BE

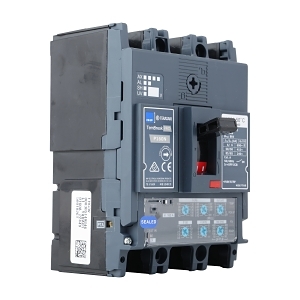

Terasaki TemBreak PRO MCCB 160 Frame 50kA 3P 100A Basic Electronic

$1,389.20 List price: $1,844.70

+ −

30 Days Return Delivery Options

Brand: NHP

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 50kA 3P 100A Basic Electronic

Brand: NHP

SKU: P160N23100BE

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Protection Device

Technical Specifications

Rated Current: 100 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 50 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Trip Curve: LSI
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 36.8-100 A
Instantaneous Protection Adjustment Range: 300-1500 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Impulse Withstand Voltage: 8 kV
Power Loss per Pole: 3.5 W
Mechanical Life: 50000 cycles
Electrical Life: 30000 cycles
Cable Cross Section Range: 1.5-70 mm²
Pollution Degree: 3
Rated Surrounding Temperature: 50 °C
Maximum Operating Temperature: 70 °C
Dimensions (H x L x W): 130mm x 95.5mm x 90mm
Weight: 1 kg

Key Features

Electronic release trip unit for precise protection.
High breaking capacity of 50 kA at 415 V.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical protection in commercial buildings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed to operate efficiently in a wide range of temperatures and humidity levels.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 50kA 3P 100A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
