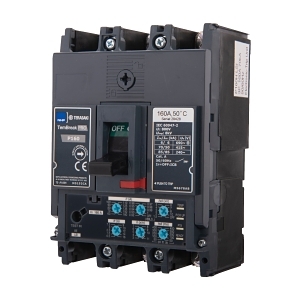

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 50kA 3P 160A Basic Electronic with GF
Brand: NHP
SKU: P160N23160BEG
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker with Earth Fault Protection
Technical Specifications
- Rated Current: 160 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Short Circuit Breaking Capacity: 50 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSIG
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Power Loss: 27 W
- Cable Cross Section Range: 1.5-70 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Dimensions (H x L x W): 130mm x 95.5mm x 90mm
- Weight: 1 kg
Key Features
- Electronic release for precise trip settings.
- Integrated earth fault protection.
- Long electrical life with 30,000 service cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 50kA 3P 160A Basic Electronic with GF is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
Non-Returnable & Non-Cancellable
