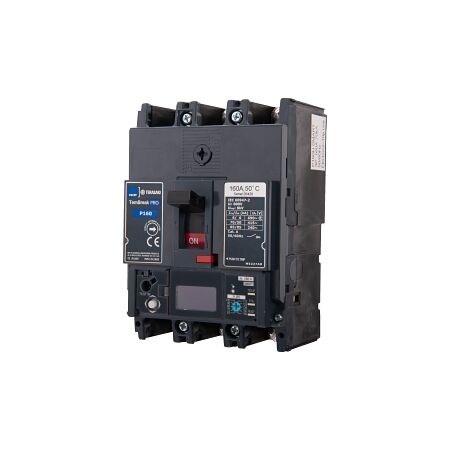

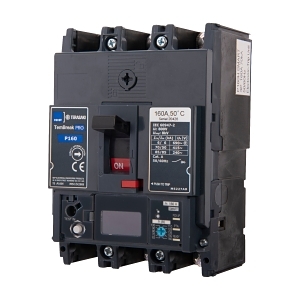

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 50kA 3P 160A Smart Electronic
Brand: NHP
SKU: P160N23160SE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Smart Circuit Breaker
Technical Specifications
- Rated Current: 160 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSIG
- Integrated Energy Metering Function: Yes
- Integrated Communication Function: Yes
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Power Loss: 27 W
- Mechanical Life: 50,000 cycles
- Electrical Life: 30,000 cycles
- Dimensions (H x L x W): 130mm x 95.5mm x 90mm
- Weight: 1 kg
Key Features
- Electronic release trip unit for enhanced protection.
- Integrated earth fault protection.
- Modbus TCP communication capability.
- Long mechanical and electrical life cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and conditions.
Warranty Information
Standard warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 50kA 3P 160A Smart Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
Non-Returnable & Non-Cancellable
