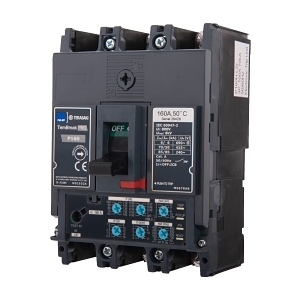

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 50kA 3P 40A Basic Electronic with GF
Brand: NHP
SKU: P160N2340BEG
Alternatively Known As: MCCB, Circuit Breaker, Electronic Circuit Breaker, Power Switching Circuit Breaker
Technical Specifications
- Rated Current: 40 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSIG
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 14.7-40 A
- Instantaneous Protection Adjustment Range: 120-600 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 6 kA
- Rated Impulse Withstand Voltage: 8 kV
- Mechanical Life: 50000 cycles
- Electrical Life: 30000 cycles
- Dimensions (H x L x W): 130mm x 95.5mm x 90mm
- Weight: 1 kg
Key Features
- Electronic release trip unit for enhanced protection.
- Integrated earth fault protection.
- High short circuit breaking capacity of 50 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving overall system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 50kA 3P 40A Basic Electronic with GF is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
Non-Returnable & Non-Cancellable
