Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 100A Adj. Therm. Adj. Mag.

Trade Discount 25%

SKU: P160H23100TM

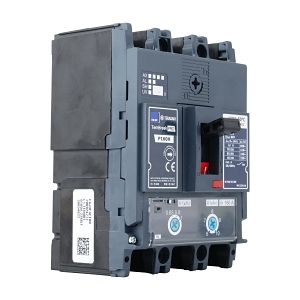

Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 100A Adj. Therm. Adj. Mag.

$933.50 List price: $1,239.60

+ −

30 Days Return Delivery Options

Weight: 1.000 kg

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 100A Adj. Therm. Adj. Mag.

Brand: NHP

SKU: P160H23100TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 100A

Technical Specifications

Rated Current: 100 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 63-100 A
Instantaneous Protection Adjustment Range: 600-1200 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity: 6 kA
Rated Impulse Withstand Voltage: 8 kV
Power Loss: 20.1 W
Mechanical Life: 50,000 cycles
Electrical Life: 30,000 cycles
Cable Cross Section Range: 1.5-70 mm²
Dimensions (H x L x W): 130mm x 95.5mm x 90mm
Weight: 1 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High short-circuit breaking capacity of 70 kA at 415 V.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical installations in commercial buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed to operate efficiently in a wide range of temperatures and humidity levels.

Warranty Information

Standard warranty applies, please check with the manufacturer for details.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 100A is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
