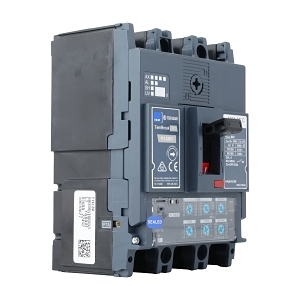

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 160A Basic Electronic
Brand: NHP
SKU: P160H23160BE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 160A
Technical Specifications
- Rated Current: 160 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSI
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Power Loss: 27 W
- Mechanical Life: 50,000 cycles
- Electrical Life: 30,000 cycles
- Cable Cross Section Range: 1.5-70 mm²
- Dimensions (H x L x W): 130mm x 95.5mm x 90mm
- Weight: 1 kg
Key Features
- Electronic release trip unit for precise protection.
- High short circuit breaking capacity of 70 kA.
- Suitable for isolation and front side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical panels in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 160A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
