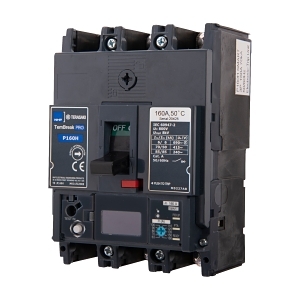

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 160A Smart Electronic
Brand: NHP
SKU: P160H23160SE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 160A
Technical Specifications
- Rated Current: 160 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Short Circuit Breaking Capacity: 70 kA at 415 V
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSIG
- Long Time Overload Protection Adjustment Range: 63-160 A
- Instantaneous Protection Adjustment Range: 480-1760 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Integrated Energy Metering Function: Yes
- Integrated Communication Function: Yes
- Power Loss per Pole: 9 W
- Mechanical Life: 50,000 cycles
- Electrical Life: 30,000 cycles
- Dimensions (H x L x W): 130mm x 95.5mm x 90mm
- Weight: 1 kg
Key Features
- Electronic release trip unit for enhanced protection.
- Integrated earth fault protection.
- Modbus TCP communication capability.
- Zone selective interlocking function.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and conditions.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 160A Smart Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
