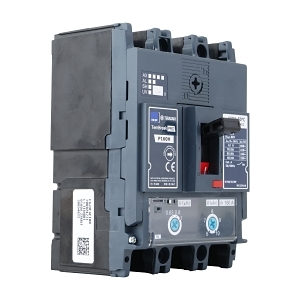

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 20A Adj. Therm. Adj. Mag.
Brand: NHP
SKU: P160H2320TM
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 20A, 3 Pole MCCB
Technical Specifications
- Rated Current: 20 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Type of Protection Trip Unit: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 12.5-20 A
- Instantaneous Protection Adjustment Range: 120-240 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 6 kA
- Rated Impulse Withstand Voltage: 8 kV
- Power Loss: 24.9 W
- Mechanical Life: 50000 cycles
- Electrical Life: 30000 cycles
- Cable Cross Section Range: 1.5-70 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Dimensions (H x L x W): 130mm x 95.5mm x 90mm
- Weight: 1 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- High breaking capacity of 70 kA for reliable short circuit protection.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Energy-efficient design reduces power loss.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 20A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
