Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 40A Basic Electronic

Trade Discount 25%

SKU: P160H2340BE

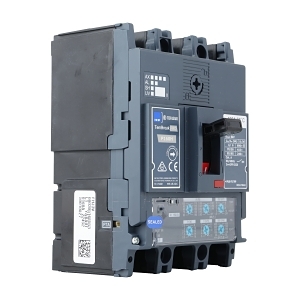

Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 40A Basic Electronic

$1,541.20 List price: $2,046.40

+ −

30 Days Return Delivery Options

Weight: 1.000 kg

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 40A Basic Electronic

Brand: NHP

SKU: P160H2340BE

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 40A

Technical Specifications

Rated Current: 40 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Type of Protection Trip Unit: Electronic release
Trip Curve: LSI
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 14.7-40 A
Instantaneous Protection Adjustment Range: 120-600 A
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity (ICU): 6 kA
Rated Short Circuit Breaking Capacity (ICS): 6 kA
Short Time Protection Adjustment Range: 22.1-400 A
Rated Impulse Withstand Voltage: 8 kV
Over Voltage Category: IV
AC Power Loss per Pole: 0.6 W
Mechanical Life: 50000 cycles
Max Vibration Acceleration: 19 m/s²
Cable Cross Section Range: 1.5-70 mm²
Dimensions (H x L x W): 130mm x 95.5mm x 90mm
Weight: 1 kg

Key Features

Electronic release for precise trip settings.
High breaking capacity of 70 kA at 415 V.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control and protection
Commercial: Electrical distribution systems
General: Any application requiring reliable circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Energy-efficient design reduces power loss.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 40A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
