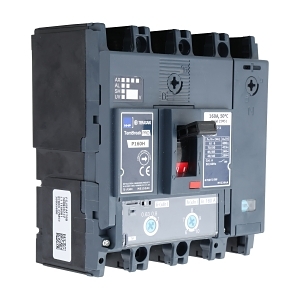

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 70kA 4P 100A Adj. Therm. Adj. Mag.
Brand: NHP
SKU: P160H24100TM
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 100A
Technical Specifications
- Rated ultimate short circuit breaking capacity: 70 kA
- Rated service short circuit breaking capacity: 50 kA
- Rated insulation voltage: 800 V
- Rated frequency: 50-60 Hz
- Electrical life: 30,000 cycles
- Mechanical life: 50,000 cycles
- Pollution degree: 3
- Maximum operating temperature: 70 °C
- Storage temperature: -10-70 °C
- Allowable relative humidity: 0-85 %
- Max altitude before derating: 2000 m
- Dimensions (H x L x W): 130mm x 95.5mm x 120mm
- Weight: 1.3 kg
Key Features
- Rated current: 100 A
- 4 poles with adjustable thermal and magnetic trip settings
- Rated short circuit breaking capacity: 70 kA at 415 V
- Suitable for isolation and front-side connection
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information
Standard warranty applies.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 70kA 4P 100A is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
