Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Terasaki TemBreak PRO MCCB 160 Frame 70kA 4P 50A Adj. Therm. Adj. Mag.

Trade Discount 25%

SKU: P160H2450TM

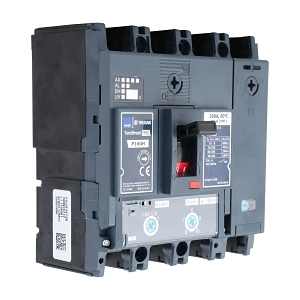

Terasaki TemBreak PRO MCCB 160 Frame 70kA 4P 50A Adj. Therm. Adj. Mag.

$986.10 List price: $1,309.40

+ −

30 Days Return Delivery Options

Brand: NHP

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 70kA 4P 50A Adj. Therm. Adj. Mag.

Brand: NHP

SKU: P160H2450TM

Alternatively Known As: Terasaki Circuit Breaker, MCCB 160A, 4 Pole Circuit Breaker

Technical Specifications

Rated Current: 50 A
Number of Poles: 4
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 32-50 A
Instantaneous Protection Adjustment Range: 300-600 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity: 6 kA
Rated Impulse Withstand Voltage: 8 kV
Power Loss per Pole: 7.5 W
Mechanical Life: 50,000 cycles
Electrical Life: 30,000 cycles
Cable Cross Section Range: 1.5-70 mm²
Pollution Degree: 3
Rated Surrounding Temperature: 50 °C
Maximum Operating Temperature: 70 °C
Dimensions (H x L x W): 130mm x 95.5mm x 120mm
Weight: 1.3 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 70 kA at 415 V for enhanced safety.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in commercial and industrial settings
Electrical: Suitable for use in electrical panels and switchboards

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for long service life, reducing the need for frequent replacements and waste.

Warranty Information

Standard warranty of 12 months against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 70kA 4P 50A is available now for immediate purchase. Ideal for industrial and electrical applications, ensuring reliable circuit protection.
