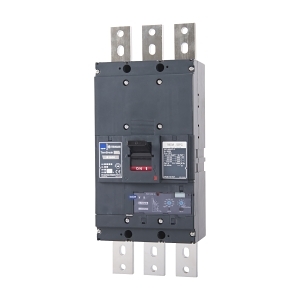

Product Name/Title: Terasaki TemBreak PRO MCCB 1600 Frame 85kA 3Pole 1600A Basic Electronic w Cbl Intlk
Brand: NHP
SKU: B1600HL31600BECI
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 1600A
Technical Specifications
- Rated Current: 1600 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 100 kA
- Rated Service Short Circuit Breaking Capacity: 75 kA
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 640-1600 A
- Instantaneous Protection Adjustment Range: 4000-19200 A
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 45 kA at 690 V AC
- Power Loss: 400 W
- Mechanical Life: 5000 cycles
- Dimensions (H x L x W): 570mm x 191mm x 210mm
- Weight: 27 kg
Key Features
- Electronic release trip unit for precise protection.
- High short-circuit breaking capacity of 100 kA.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in large buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Terasaki TemBreak PRO MCCB 1600 Frame 85kA 3Pole 1600A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
