Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Terasaki TemBreak PRO MCCB 250 Frame 125kA 3P 125A Basic Electronic

Trade Discount 25%

SKU: B250P3125BE

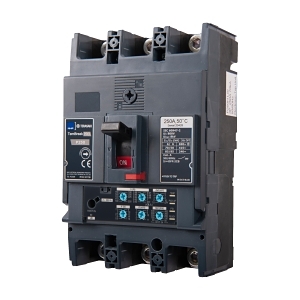

Terasaki TemBreak PRO MCCB 250 Frame 125kA 3P 125A Basic Electronic

$2,590.10 List price: $3,439.30

+ −

30 Days Return Delivery Options

Weight: 2.400 kg

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 125kA 3P 125A Basic Electronic

Brand: NHP

SKU: B250P3125BE

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 125A

Technical Specifications

Rated Current: 125 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 125 kA
Rated Service Short Circuit Breaking Capacity: 85 kA
Trip Curve: LSI
Frame Size Rating: 250 A
Long Time Overload Protection Adjustment Range: 50-125 A
Instantaneous Protection Adjustment Range: 650-1625 A
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity: 20 kA at 690 V AC
Rated Impulse Withstand Voltage: 8 kV
Mechanical Life: 20000 cycles
Electrical Life: 10000 cycles
Pollution Degree: 3
Max Operating Temperature: 70 °C
Dimensions (H x L x W): 165mm x 127mm x 105mm
Weight: 2.4 kg

Key Features

Electronic release trip unit for precise protection.
High breaking capacity of 125 kA at 415 V.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in commercial buildings
General: Protection of electrical circuits from overloads and short circuits

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving system reliability.

Warranty Information

Standard warranty applies, please check with the supplier for details.

Available Now

The Terasaki TemBreak PRO MCCB 250 Frame 125kA 3P 125A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
