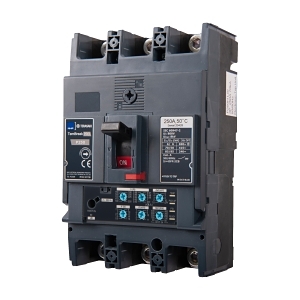

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 125kA 3P 160A Basic Electronic
Brand: NHP
SKU: B250P3160BE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 160A
Technical Specifications
- Rated Current: 160 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 85 kA
- Trip Curve: LSI
- Frame Size Rating: 250 A
- Long Time Overload Protection Adjustment Range: 64-160 A
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Rated Impulse Withstand Voltage: 8 kV
- Mechanical Life: 20,000 cycles
- Electrical Life: 10,000 cycles
- Dimensions (H x L x W): 165mm x 127mm x 105mm
- Weight: 2.4 kg
Key Features
- Electronic release trip unit for precise protection.
- High short-circuit breaking capacity of 125 kA.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical panels in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss during operation.
Warranty Information
Standard warranty as per manufacturer’s policy.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 125kA 3P 160A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
Non-Returnable & Non-Cancellable
