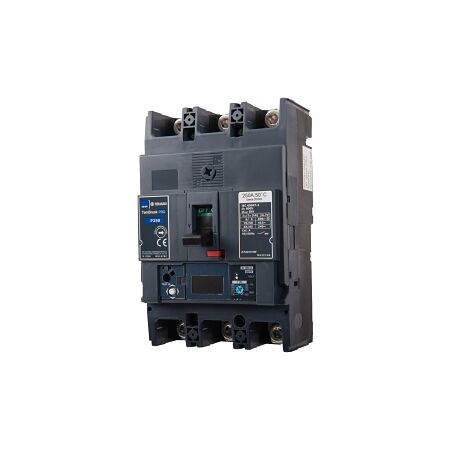

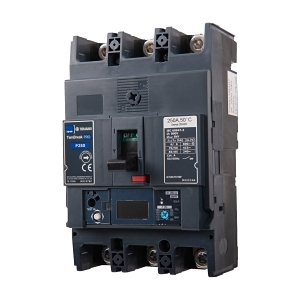

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 125kA 3P 40A Smart Electronic
Brand: NHP
SKU: B250P340SE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Smart Circuit Breaker
Technical Specifications
- Rated Current: 40 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 85 kA
- Trip Curve: LSI
- Frame Size Rating: 250 A
- Long Time Overload Protection Adjustment Range: 16-40 A
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Integrated Communication Function: Yes
- Communications Protocol: Modbus TCP
- Mechanical Life: 20000 cycles
- Max Vibration Acceleration: 19 m/s²
- Max Operating Temperature: 70 °C
- Dimensions (H x L x W): 165mm x 127mm x 129mm
- Weight: 2.4 kg
Key Features
- Electronic release trip unit for enhanced protection.
- Integrated energy metering and communication functions.
- High short-circuit breaking capacity of 125 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety and compliance.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- Electrical: Suitable for use in electrical panels and switchboards
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Energy-efficient design reduces power loss and enhances system reliability.
Warranty Information
Standard warranty applies, please check with the supplier for details.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 125kA 3P 40A Smart Electronic is available now for immediate purchase. Ideal for industrial and electrical applications.
