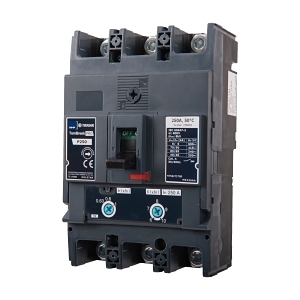

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 200kA 3P 250A Adjustable Thermal Adjustable Magnetic
Brand: NHP
SKU: B250R3250TM
Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 200 kA
- Rated Service Short Circuit Breaking Capacity: 150 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Dimensions (H x L x W): 165mm x 127mm x 105mm
- Weight: 2.4 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- High short-circuit breaking capacity of 200 kA at 415 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for circuit breakers.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving overall system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 200kA 3P 250A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
