Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Terasaki TemBreak PRO MCCB 250 Frame 25kA 4P 100A Adj. Thermal Adj. Magnetic

Trade Discount 25%

SKU: A250E4100TM

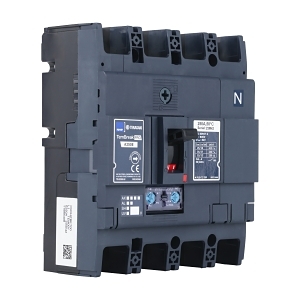

Terasaki TemBreak PRO MCCB 250 Frame 25kA 4P 100A Adj. Thermal Adj. Magnetic

$931.90 List price: $1,237.40

+ −

30 Days Return Delivery Options

Weight: 1.900 kg

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 25kA 4P 100A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: A250E4100TM

Alternatively Known As: Terasaki Circuit Breaker, MCCB 250A, 100A MCCB, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 100 A
Number of Poles: 4
Max Rated Operation Voltage: 525 V
Rated Ultimate Short Circuit Breaking Capacity: 25 kA
Rated Service Short Circuit Breaking Capacity: 19 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 250 A
Long Time Overload Protection Adjustment Range: 63-100 A
Instantaneous Protection Adjustment Range: 500-1300 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 690 V
Rated Impulse Withstand Voltage: 8 kV
Over Voltage Category: IV
Power Loss: 26.6 W
Mechanical Life: 18000 cycles
Max Vibration Acceleration: 19 m/s²
Max Operating Temperature: 70 °C
Storage Temperature: -10-70 °C
Allowable Relative Humidity: 0-85 %
Dimensions (H x L x W): 165mm x 95.5mm x 140mm
Weight: 1.9 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 25 kA at 415 V for enhanced safety.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical protection in commercial buildings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for long electrical life, reducing waste and the need for frequent replacements.

Warranty Information

Standard warranty as per manufacturer’s policy.

Available Now

The Terasaki TemBreak PRO MCCB 250 Frame 25kA 4P 100A is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
