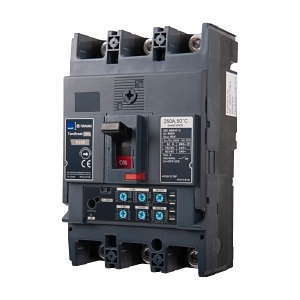

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 36kA 3P 100A Basic Electronic with GF
Brand: NHP
SKU: P250F3100BEG
Alternatively Known As: MCCB, Circuit Breaker, Electronic Circuit Breaker, Power Switching Circuit Breaker
Technical Specifications
- Rated Current: 100 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 36 kA
- Rated Service Short Circuit Breaking Capacity: 36 kA
- Trip Curve: LSIG
- Frame Size Rating: 250 A
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Mechanical Life: 30000 cycles
- Electrical Life: 10000 cycles
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Dimensions (H x L x W): 165mm x 95.5mm x 105mm
- Weight: 1.5 kg
Key Features
- Electronic release trip unit for enhanced protection.
- Integrated earth fault protection.
- Long time overload protection adjustment range from 36.8-100 A.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving overall system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 36kA 3P 100A Basic Electronic with GF is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
