P250F3125TM

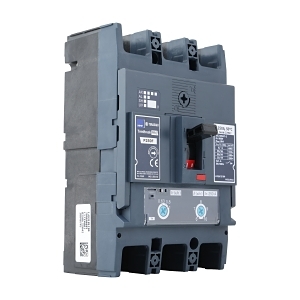

Terasaki TemBreak PRO MCCB 250 Frame 36kA 3P 125A Adj. Thermal Adj. Magnetic


$833.10 List price: $1,106.30
+

Weight: 1.500 kg

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 36kA 3P 125A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: P250F3125TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 125A

Technical Specifications
  • Rated Current: 125 A
  • Number of Poles: 3
  • Max Rated Operation Voltage: 690 V
  • Rated Ultimate Short Circuit Breaking Capacity: 36 kA
  • Rated Service Short Circuit Breaking Capacity: 36 kA
  • Type of Protection: Thermal/magnetic release
  • Trip Curve: Adjustable thermal, adjustable magnetic
  • Frame Size Rating: 250 A
  • Long Time Overload Protection Adjustment Range: 80-125 A
  • Instantaneous Protection Adjustment Range: 750-1625 A
  • Rated Frequency: 50-60 Hz
  • Rated Insulation Voltage: 800 V
  • Rated Short Circuit Breaking Capacity (ICU): 6 kA
  • Rated Impulse Withstand Voltage: 8 kV
  • Power Loss per Pole: 9.3 W
  • Mechanical Life: 30000 cycles
  • Cable Cross Section Range: 35-185 mm²
  • Pollution Degree: 3
  • Rated Surrounding Temperature: 50 °C
  • Maximum Operating Temperature: 70 °C
  • Dimensions (H x L x W): 165mm x 95.5mm x 105mm
  • Weight: 1.5 kg
Key Features
  • Adjustable thermal and magnetic trip settings for customized protection.
  • High breaking capacity of 36 kA for reliable circuit protection.
  • Suitable for isolation and front-side connection.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Electrical panels in commercial buildings
  • General: Protection of electrical circuits in various applications
Standards & Compliance
  • Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
  • Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 250 Frame 36kA 3P 125A is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
