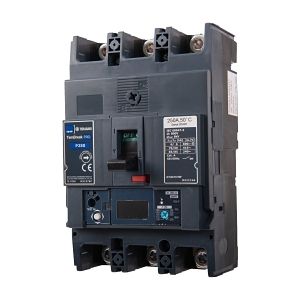

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 36kA 3P 250A Smart Electronic
Brand: NHP
SKU: P250F3250SE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 250A
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Short Circuit Breaking Capacity: 36 kA
- Trip Curve: LSIG
- Integrated Earth Fault Protection: Yes
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Power Loss: 45 W
- Mechanical Life: 30000 cycles
- Electrical Life: 10000 cycles
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Dimensions (H x L x W): 165mm x 95.5mm x 105mm
- Weight: 1.5 kg
Key Features
- Electronic release trip unit for enhanced protection.
- Integrated energy metering and communication functions.
- Zone selective interlocking for improved safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 36kA 3P 250A Smart Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
