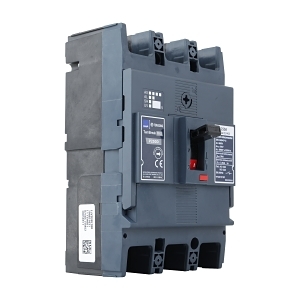

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 3P 250A Non Auto Switch
Brand: NHP
SKU: P250D3250NN
Alternatively Known As: MCCB, Circuit Breaker, Power Switching Circuit Breaker
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Short Time Withstand Current: 3.6 kA
- Electrical Life: 10,000 cycles
- Mechanical Life: 30,000 cycles
- Power Loss: 45 W
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Dimensions (H x L x W): 165mm x 95.5mm x 105mm
- Weight: 1.5 kg
Key Features
- 250A rated current with 3 poles for robust circuit protection.
- Non auto-switch type for manual operation.
- Suitable for isolation and high voltage applications.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical panels in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 3P 250A Non Auto Switch is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
