P250N3100TM

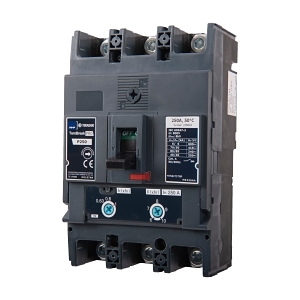

Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 100A Adj. Thermal Adj. Magnetic


$735.40 List price: $976.50
+

Weight: 1.500 kg

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 100A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: P250N3100TM

Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications
  • Rated Current: 100 A
  • Number of Poles: 3
  • Max Rated Operation Voltage: 690 V
  • Rated Ultimate Short Circuit Breaking Capacity: 50 kA
  • Rated Service Short Circuit Breaking Capacity: 50 kA
  • Type of Protection: Thermal/magnetic release
  • Trip Curve: Adjustable thermal, adjustable magnetic
  • Frame Size Rating: 250 A
  • Long Time Overload Protection Adjustment Range: 63-100 A
  • Instantaneous Protection Adjustment Range: 600-1300 A
  • Rated Frequency: 50-60 Hz
  • Rated Insulation Voltage: 800 V
  • Rated Impulse Withstand Voltage: 8 kV
  • Power Loss: 18 W
  • Mechanical Life: 30,000 cycles
  • Electrical Life: 10,000 cycles
  • Cable Cross Section Range: 35-185 mm²
  • Pollution Degree: 3
  • Rated Surrounding Temperature: 50 °C
  • Maximum Operating Temperature: 70 °C
  • Dimensions (H x L x W): 165mm x 95.5mm x 105mm
  • Weight: 1.5 kg
Key Features
  • Adjustable thermal and magnetic trip settings for customized protection.
  • High breaking capacity of 50 kA for reliable short circuit protection.
  • Suitable for isolation and front-side connection.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Electrical protection in commercial buildings
  • General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
  • Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
  • Energy-efficient design reduces power loss.
Warranty Information

Standard warranty of 2 years against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 100A is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
