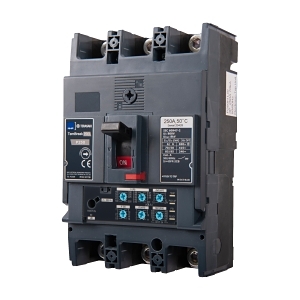

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 100A Basic Electronic with GF
Brand: NHP
SKU: P250N3100BEG
Alternatively Known As: MCCB, Circuit Breaker, Electronic Circuit Breaker
- Rated Current: 100 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSIG
- Frame Size Rating: 250 A
- Long Time Overload Protection Adjustment Range: 36.8-100 A
- Instantaneous Protection Adjustment Range: 300-1500 A
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 6 kA
- Rated Short Circuit Breaking Capacity (ICS): 6 kA
- Rated Impulse Withstand Voltage: 8 kV
- Over Voltage Category: IV
- Power Loss per Pole: 2.4 W
- Mechanical Life: 30000 cycles
- Electrical Life: 10000 cycles
- Cable Cross Section Range: 35-185 mm²
- Dimensions (H x L x W): 165mm x 95.5mm x 105mm
- Weight: 1.5 kg
- Electronic release trip unit for precise protection.
- Integrated earth fault protection for enhanced safety.
- High short circuit breaking capacity of 50 kA.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
- Designed for energy efficiency, reducing power loss during operation.
1 year warranty against manufacturing defects.
The Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 100A Basic Electronic with GF is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
