Home/Electrical/Switchgear/Circuit Breakers/Circuit Breakers A/C/Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 100A Smart Electronic

Trade Discount 25%

SKU: P250N3100SE

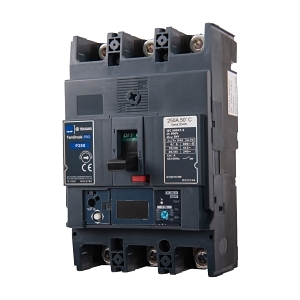

Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 100A Smart Electronic

$3,237.40 List price: $4,298.90

+ −

30 Days Return Delivery Options

Weight: 1.500 kg

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 100A Smart Electronic

Brand: NHP

SKU: P250N3100SE

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 100A

Technical Specifications

Rated Current: 100 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Short Circuit Breaking Capacity: 50 kA
Type of Protection: Electronic release
Trip Curve: LSIG
Frame Size Rating: 250 A
Long Time Overload Protection Adjustment: 40-100 A
Instantaneous Protection Adjustment: 300-1500 A
Rated Insulation Voltage: 800 V
Integrated Energy Metering: Yes
Integrated Communication Function: Yes
Power Loss per Pole: 2.4 W
Electrical Life: 10,000 cycles
Mechanical Life: 30,000 cycles
Cable Cross Section Range: 35-185 mm²
Pollution Degree: 3
Rated Surrounding Temperature: 50 °C
Dimensions (H x L x W): 165mm x 95.5mm x 105mm
Weight: 1.5 kg

Key Features

Electronic release trip unit for enhanced protection.
Integrated earth fault protection.
Modbus TCP communication capability.
Zone selective interlocking function.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical protection in commercial buildings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed to operate efficiently in a wide range of temperatures and humidity levels.

Warranty Information

Standard warranty applies, please check with the manufacturer for specific terms.

Available Now

The Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 100A Smart Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
