Home/Electrical/Switchgear/Circuit Breakers/Circuit Breakers A/C/Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 125A Adj. Thermal Adj. Magnetic

Trade Discount 25%

SKU: P250N3125TM

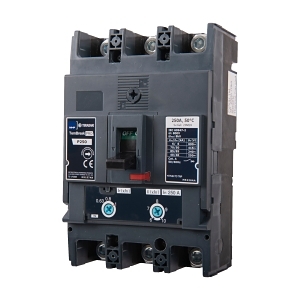

Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 125A Adj. Thermal Adj. Magnetic

$859.40 List price: $1,141.20

+ −

30 Days Return Delivery Options

Weight: 1.500 kg

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 125A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: P250N3125TM

Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 125 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 50 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 250 A
Long Time Overload Protection Adjustment Range: 80-125 A
Instantaneous Protection Adjustment Range: 750-1625 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity (ICU): 6 kA
Rated Short Circuit Breaking Capacity (ICS): 6 kA
Rated Impulse Withstand Voltage: 8 kV
Over Voltage Category: IV
Power Loss per Pole: 9.3 W
Mechanical Life: 30000 cycles
Electrical Life: 10000 cycles
Cable Cross Section Range: 35-185 mm²
Dimensions (H x L x W): 165mm x 95.5mm x 105mm
Weight: 1.5 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 50 kA for reliable circuit protection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution systems
Commercial: Electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed to operate efficiently in a wide range of temperatures and conditions.

Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 125A is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
