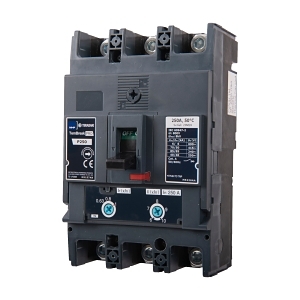

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 160A Adj. Thermal Adj. Magnetic
Brand: NHP
SKU: P250N3160TM
Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 160 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Type of Protection Trip Unit: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Frame Size Rating: 250 A
- Long Time Overload Protection Adjustment Range: 100-160 A
- Instantaneous Protection Adjustment Range: 960-2080 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Mechanical Life: 30000 cycles
- Electrical Life: 10000 cycles
- Power Loss: 29.1 W
- Dimensions (H x L x W): 165mm x 95.5mm x 105mm
- Weight: 1.5 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- High breaking capacity of 50 kA for reliable short circuit protection.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Energy-efficient design reduces power loss.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 160A is available now for immediate purchase. Ideal for industrial applications requiring reliable circuit protection.
