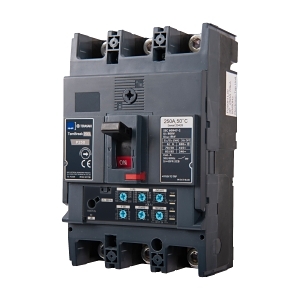

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 250A Basic Electronic with GF
Brand: NHP
SKU: P250N3250BEG
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker with Earth Fault Protection
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSIG
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Power Loss: 45 W
- Mechanical Life: 30,000 cycles
- Electrical Life: 10,000 cycles
- Cable Cross Section Range: 35-185 mm²
- Dimensions (H x L x W): 165mm x 95.5mm x 105mm
- Weight: 1.5 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated earth fault protection.
- Suitable for isolation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Manufacturing facilities, machinery protection
- Commercial: Large buildings, electrical distribution systems
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information
Standard warranty applies.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 250A Basic Electronic with GF is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
