Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 40A Basic Electronic with GF

Trade Discount 25%

SKU: P250N340BEG

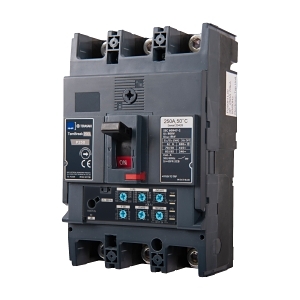

Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 40A Basic Electronic with GF

$1,717.80 List price: $2,281.00

+ −

30 Days Return Delivery Options

Brand: NHP

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 40A Basic Electronic with GF

Brand: NHP

SKU: P250N340BEG

Alternatively Known As: MCCB, Motor Circuit Breaker, Electronic Circuit Breaker

Technical Specifications

Rated Current: 40 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 50 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Type of Protection Trip Unit: Electronic release
Trip Curve: LSIG
Frame Size Rating: 250 A
Long Time Overload Protection Adjustment Range: 14.7-40 A
Instantaneous Protection Adjustment Range: 120-600 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity: 6 kA
Rated Impulse Withstand Voltage: 8 kV
Power Loss: 1.2 W
Mechanical Life: 30000 cycles
Max Vibration Acceleration: 19 m/s²
Max Operating Temperature: 70 °C
Allowable Relative Humidity: 0-85 %
Dimensions (H x L x W): 165mm x 95.5mm x 105mm
Weight: 1.5 kg

Key Features

Electronic release trip unit for precise protection.
Integrated earth fault protection for enhanced safety.
High short circuit breaking capacity of 50 kA.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control and protection
Commercial: Electrical distribution systems
General: Power management in various electrical installations

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and operational costs.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 40A Basic Electronic with GF is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
