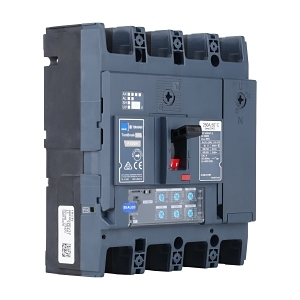

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 50kA 4P 250A Basic Electronic
Brand: NHP
SKU: P250N4250BE
Alternatively Known As: MCCB, Circuit Breaker, Electronic Circuit Breaker
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 92-250 A
- Instantaneous Protection Adjustment Range: 750-2750 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 6 kA
- Rated Short Circuit Breaking Capacity (ICS): 6 kA
- Power Loss per Pole: 15 W
- Mechanical Life: 30000 cycles
- Electrical Life: 10000 cycles
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Dimensions (H x L x W): 165mm x 95.5mm x 140mm
- Weight: 2 kg
Key Features
- Electronic release trip unit for precise protection.
- High breaking capacity of 50 kA.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency and reliability in electrical systems.
Warranty Information
Standard warranty applies.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 50kA 4P 250A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
