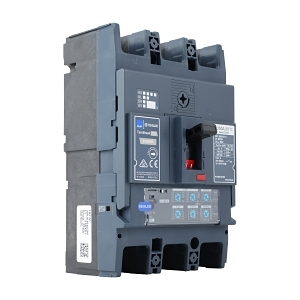

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 70kA 3P 100A Basic Electronic
Brand: NHP
SKU: P250H3100BE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 100A
Technical Specifications
- Rated Current: 100 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSI
- Frame Size Rating: 250 A
- Long Time Overload Protection Adjustment Range: 36.8-100 A
- Instantaneous Protection Adjustment Range: 300-1500 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 6 kA
- Power Loss: 7.2 W
- Mechanical Life: 20000 cycles
- Electrical Life: 10000 cycles
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Dimensions (H x L x W): 165mm x 95.5mm x 105mm
- Weight: 1.5 kg
Key Features
- Electronic release trip unit for precise protection.
- High breaking capacity of 70 kA at 415 V.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Manufacturing facilities, machinery protection
- Commercial: Electrical distribution in commercial buildings
- General: Power management in various electrical systems
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance.
Environmental Benefits
- Designed to operate efficiently in a wide temperature range.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 70kA 3P 100A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
