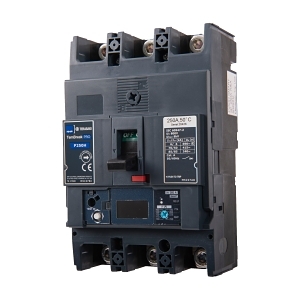

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 70kA 3P 100A Smart Electronic
Brand: NHP
SKU: P250H3100SE
Alternatively Known As: Terasaki Circuit Breaker, MCCB 250A, Smart Electronic Breaker
Technical Specifications
- Rated Current: 100 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSIG
- Frame Size Rating: 250 A
- Long Time Overload Protection Adjustment Range: 40-100 A
- Instantaneous Protection Adjustment Range: 300-1500 A
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 6 kA
- Rated Impulse Withstand Voltage: 8 kV
- Mechanical Life: 30000 cycles
- Electrical Life: 10000 cycles
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Dimensions (H x L x W): 165mm x 95.5mm x 105mm
- Weight: 1.5 kg
Key Features
- Electronic release trip unit for enhanced protection.
- Integrated earth fault protection and energy metering function.
- Modbus TCP communication capability for smart monitoring.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Energy-efficient design reduces power loss and enhances operational efficiency.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 70kA 3P 100A Smart Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
Non-Returnable & Non-Cancellable
