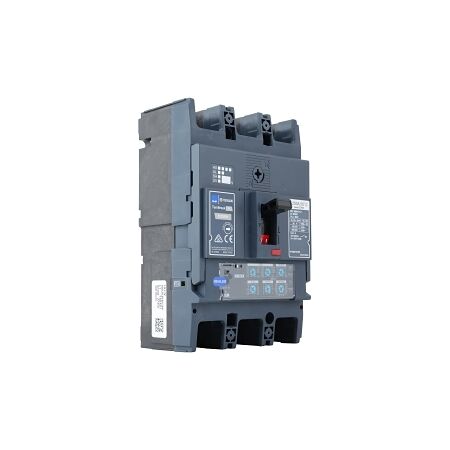

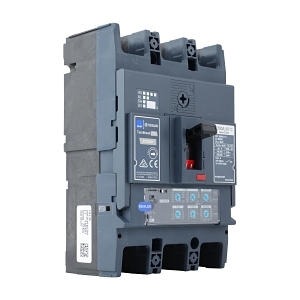

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 70kA 3P 40A Basic Electronic
Brand: NHP
SKU: P250H340BE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 40A, Terasaki Breaker
Technical Specifications
- Rated Current: 40 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSI
- Frame Size Rating: 250 A
- Long Time Overload Protection Adjustment Range: 14.7-40 A
- Instantaneous Protection Adjustment Range: 120-600 A
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 6 kA
- Power Loss: 1.2 W
- Mechanical Life: 20000 cycles
- Max Vibration Acceleration: 19 m/s²
- Max Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Dimensions (H x L x W): 165mm x 95.5mm x 105mm
- Weight: 1.5 kg
Key Features
- Electronic release trip unit for precise protection.
- High breaking capacity of 70 kA at 415 V.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving overall system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 70kA 3P 40A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
Non-Returnable & Non-Cancellable
