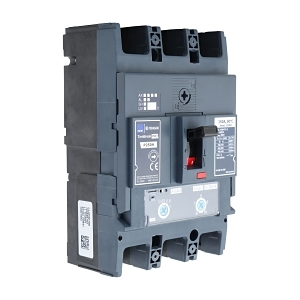

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 70kA 3P 63A Adj. Thermal Adj. Magnetic
Brand: NHP
SKU: P250H363TM
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 63A
Technical Specifications
- Rated Current: 63 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Frame Size Rating: 250 A
- Long Time Overload Protection Adjustment Range: 40-63 A
- Instantaneous Protection Adjustment Range: 378-819 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 6 kA
- Rated Impulse Withstand Voltage: 8 kV
- Power Loss per Pole: 4.7 W
- Mechanical Life: 30,000 cycles
- Electrical Life: 10,000 cycles
- Cable Cross Section Range: 35-185 mm²
- Dimensions (H x L x W): 165mm x 95.5mm x 105mm
- Weight: 1.5 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- High breaking capacity of 70 kA at 415 V for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Manufacturing facilities, machinery protection
- Commercial: Large buildings, electrical distribution systems
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency and reduced energy loss.
Warranty Information
Standard warranty applies.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 70kA 3P 63A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
