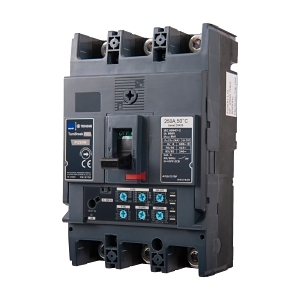

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 70kA 4P 100A Basic Electronic
Brand: NHP
SKU: P250H4100BE
Alternatively Known As: MCCB, Circuit Breaker, Electronic Circuit Breaker
Technical Specifications
- Rated Current: 100 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSI
- Frame Size Rating: 250 A
- Long Time Overload Protection Adjustment Range: 36.8-100 A
- Instantaneous Protection Adjustment Range: 300-1500 A
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 6 kA
- Power Loss: 7.2 W
- Mechanical Life: 30000 cycles
- Electrical Life: 10000 cycles
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Dimensions (H x L x W): 165mm x 95.5mm x 140mm
- Weight: 2 kg
Key Features
- Electronic release trip unit for precise protection.
- High breaking capacity of 70 kA at 415 V.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide temperature range and high humidity.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 70kA 4P 100A Basic Electronic is available now for immediate purchase. Ideal for industrial applications requiring reliable circuit protection.
Non-Returnable & Non-Cancellable
