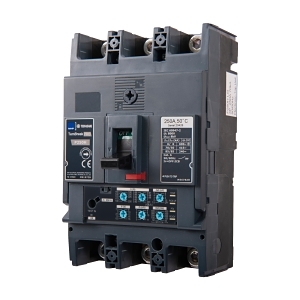

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 70kA 4P 40A Basic Electronic with GF
Brand: NHP
SKU: P250H440BEG
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker with Earth Fault Protection
Technical Specifications
- Rated Current: 40 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSIG
- Frame Size Rating: 250 A
- Long Time Overload Protection Adjustment Range: 14.7-40 A
- Instantaneous Protection Adjustment Range: 120-600 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity at 690 V: 6 kA
- Power Loss: 1.2 W
- Mechanical Life: 30,000 cycles
- Electrical Life: 10,000 cycles
- Dimensions (H x L x W): 165mm x 95.5mm x 140mm
- Weight: 2 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated earth fault protection.
- High short circuit breaking capacity of 70 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information
Standard warranty applies.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 70kA 4P 40A is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
