P250H463TM

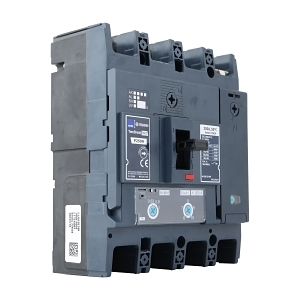

Terasaki TemBreak PRO MCCB 250 Frame 70kA 4P 63A Adj. Thermal Adj. Magnetic


$1,605.00 List price: $2,131.30
+

Weight: 2.000 kg

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 70kA 4P 63A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: P250H463TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Protection Device

Technical Specifications
  • Rated Current: 63 A
  • Number of Poles: 4
  • Max Rated Operation Voltage: 690 V
  • Rated Ultimate Short Circuit Breaking Capacity: 70 kA
  • Rated Service Short Circuit Breaking Capacity: 50 kA
  • Type of Protection Trip Unit: Thermal/magnetic release
  • Trip Curve: Adjustable thermal, adjustable magnetic
  • Frame Size Rating: 250 A
  • Long Time Overload Protection Adjustment Range: 40-63 A
  • Instantaneous Protection Adjustment Range: 378-819 A
  • Rated Insulation Voltage: 800 V
  • Rated Short Circuit Breaking Capacity (ICU): 6 kA
  • Rated Impulse Withstand Voltage: 8 kV
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 30,000 cycles
  • Cable Cross Section Range: 35-185 mm²
  • Pollution Degree: 3
  • Rated Surrounding Temperature: 50 °C
  • Maximum Operating Temperature: 70 °C
  • Dimensions (H x L x W): 165mm x 95.5mm x 140mm
  • Weight: 2 kg
Key Features
  • Adjustable thermal and magnetic trip settings for customized protection.
  • High breaking capacity of 70 kA for enhanced safety.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution and protection in commercial and industrial settings
  • General: Suitable for various electrical installations requiring reliable circuit protection
Standards & Compliance
  • Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
  • Energy-efficient design reduces power loss.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 250 Frame 70kA 4P 63A is available now for immediate purchase. Ideal for industrial applications requiring reliable circuit protection.
