Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Terasaki TemBreak PRO MCCB 400 Frame 110kA 3P 250A Adj. Thermal Adj. Mag.

Trade Discount 25%

SKU: P400S3250TM

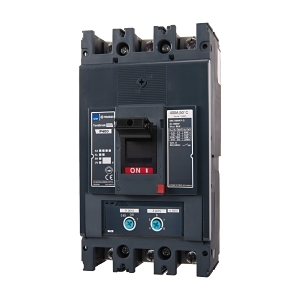

Terasaki TemBreak PRO MCCB 400 Frame 110kA 3P 250A Adj. Thermal Adj. Mag.

$2,298.00 List price: $3,051.50

+ −

30 Days Return Delivery Options

Brand: NHP

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 110kA 3P 250A Adj. Thermal Adj. Mag.

Brand: NHP

SKU: P400S3250TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 250A

Technical Specifications

Rated Current: 250 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 110 kA
Rated Service Short Circuit Breaking Capacity: 110 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 400 A
Long Time Overload Protection Adjustment Range: 160-250 A
Instantaneous Protection Adjustment Range: 2000-4000 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity: 12 kA at 690 V AC
Rated Impulse Withstand Voltage: 8 kV
Power Loss: 66.9 W
Mechanical Life: 15000 cycles
Max Vibration Acceleration: 19 m/s²
Cable Cross Section Range: 35-400 mm²
Dimensions (H x L x W): 260mm x 151mm x 140mm
Weight: 4.3 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 110 kA for reliable circuit protection.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in large buildings
General: Protection of electrical circuits from overloads and short circuits

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving overall system performance.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 400 Frame 110kA 3P 250A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable
