Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Terasaki TemBreak PRO MCCB 400 Frame 110kA 4P 250A Adj. Thermal Adj. Mag.

Trade Discount 25%

SKU: P400S4250TM

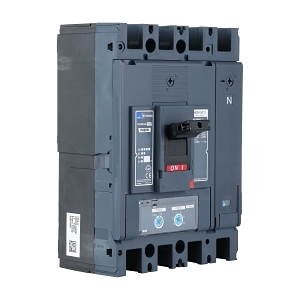

Terasaki TemBreak PRO MCCB 400 Frame 110kA 4P 250A Adj. Thermal Adj. Mag.

$2,882.10 List price: $3,827.00

+ −

30 Days Return Delivery Options

Weight: 5.700 kg

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 110kA 4P 250A Adj. Thermal Adj. Mag.

Brand: NHP

SKU: P400S4250TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 250A

Technical Specifications

Rated Current: 250 A
Number of Poles: 4
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 110 kA
Rated Service Short Circuit Breaking Capacity: 110 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 400 A
Long Time Overload Protection Adjustment Range: 160-250 A
Instantaneous Protection Adjustment Range: 1250-2500 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity (ICU): 12 kA
Rated Impulse Withstand Voltage: 8 kV
Mechanical Life: 15000 cycles
Electrical Life: 6000 cycles
Cable Cross Section Range: 35-400 mm²
Dimensions (H x L x W): 260mm x 151mm x 185mm
Weight: 5.7 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 110 kA for reliable circuit protection.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in commercial buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving overall system performance.

Warranty Information

Standard warranty applies, please check with the supplier for details.

Available Now

The Terasaki TemBreak PRO MCCB 400 Frame 110kA 4P 250A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
