Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Terasaki TemBreak PRO MCCB 400 Frame 110kA 4P 400A Adj. Thermal Adj. Mag.

Trade Discount 25%

SKU: P400S4400TM

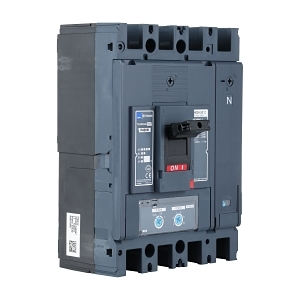

Terasaki TemBreak PRO MCCB 400 Frame 110kA 4P 400A Adj. Thermal Adj. Mag.

$2,882.10 List price: $3,827.00

+ −

30 Days Return Delivery Options

Brand: NHP

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 110kA 4P 400A Adj. Thermal Adj. Mag.

Brand: NHP

SKU: P400S4400TM

Alternatively Known As: Terasaki Circuit Breaker, MCCB 400A, TemBreak PRO 400A

Technical Specifications

Rated Current: 400 A
Number of Poles: 4
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 110 kA
Rated Service Short Circuit Breaking Capacity: 110 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 400 A
Long Time Overload Protection Adjustment Range: 250-400 A
Instantaneous Protection Adjustment Range: 2000-4000 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity (ICU): 12 kA
Rated Impulse Withstand Voltage: 8 kV
Mechanical Life: 15000 cycles
Electrical Life: 6000 cycles
Cable Cross Section Range: 35-400 mm²
Dimensions (H x L x W): 260mm x 151mm x 185mm
Weight: 5.7 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 110 kA for reliable circuit protection.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in large buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and operational costs.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 400 Frame 110kA 4P 400A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
