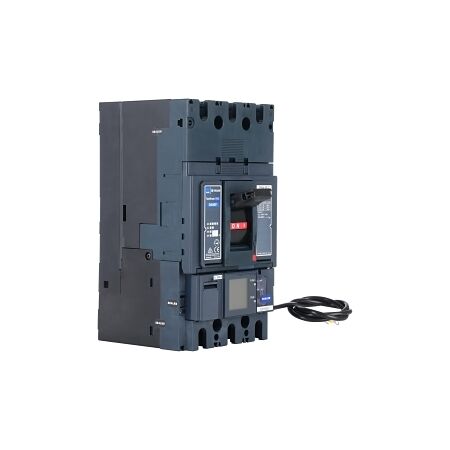

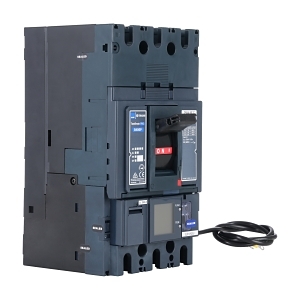

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 125kA 3P 400A Amp Meter Electronic
Brand: NHP
SKU: B400P3400SX
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 400A
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 85 kA
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 160-400 A
- Instantaneous Protection Adjustment Range: 800-5200 A
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Power Loss: 140 W
- Mechanical Life: 15000 cycles
- Electrical Life: 6000 cycles
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Dimensions (H x L x W): 260mm x 182mm x 140mm
- Weight: 4.3 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated energy metering function for monitoring power usage.
- High short circuit breaking capacity of 125 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Energy-efficient design helps reduce overall power consumption.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 400 Frame is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
Non-Returnable & Non-Cancellable
