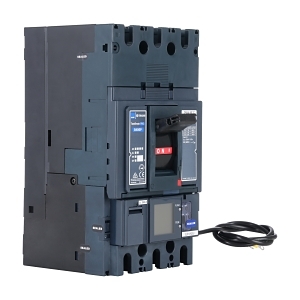

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 200kA 3P 250A Smart Electronic
Brand: NHP
SKU: B400R3250SE
Alternatively Known As: Terasaki MCCB, TemBreak PRO Circuit Breaker, Smart Electronic Circuit Breaker
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 200 kA
- Rated Service Short Circuit Breaking Capacity: 150 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSIG
- Frame Size Rating: 400 A
- Long Time Overload Protection Adjustment Range: 100-250 A
- Instantaneous Protection Adjustment Range: 500-3250 A
- Integrated Earth Fault Protection: Yes
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 50 kA
- Short Time Withstand Current: 5 kA
- Rated Impulse Withstand Voltage: 8 kV
- Over Voltage Category: IV
- Mechanical Life: 15000 cycles
- Max Vibration Acceleration: 19 m/s²
- Max Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Dimensions (H x L x W): 260mm x 182mm x 140mm
- Weight: 4.3 kg
Key Features
- Smart electronic release for enhanced protection and monitoring.
- Integrated energy metering and communication functions.
- High short-circuit breaking capacity of 200 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Energy-efficient design reduces overall power consumption.
- Integrated communication functions allow for better energy management.
Warranty Information
Standard warranty applies, please check with the supplier for details.
Available Now
The Terasaki TemBreak PRO MCCB 400 Frame 200kA 3P 250A Smart Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
