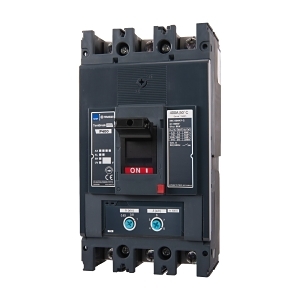

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 25kA 3P 250A Adj. Thermal Adj. Magnetic
Brand: NHP
SKU: P400E3250TM
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 250A
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 25 kA
- Type of Protection: Thermal/magnetic release
- Frame Size Rating: 400 A
- Long Time Overload Protection Adjustment Range: 160-250 A
- Instantaneous Protection Adjustment Range: 1250-2500 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Power Loss per Pole: 22.3 W
- Mechanical Life: 15000 cycles
- Electrical Life: 6000 cycles
- Cable Cross Section Range: 35-400 mm²
- Dimensions (H x L x W): 260mm x 151mm x 140mm
- Weight: 4.3 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- High breaking capacity of 25 kA for reliable circuit protection.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and conditions.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Terasaki TemBreak PRO MCCB 400 Frame 25kA 3P 250A is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
