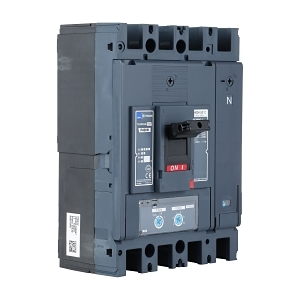

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 25kA 4P 400A Adj. Thermal Adj. Magnetic
Brand: NHP
SKU: P400E4400TM
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 400A
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 25 kA
- Rated Service Short Circuit Breaking Capacity: 25 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Frame Size Rating: 400 A
- Long Time Overload Protection Adjustment Range: 250-400 A
- Instantaneous Protection Adjustment Range: 2000-4000 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Power Loss: 127.2 W
- Mechanical Life: 15000 cycles
- Electrical Life: 6000 cycles
- Dimensions (H x L x W): 260mm x 151mm x 185mm
- Weight: 5.7 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- High breaking capacity of 25 kA for reliable short circuit protection.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- Electrical: Suitable for use in electrical panels and switchboards
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
Standard warranty applies, please check with the supplier for details.
Available Now
The Terasaki TemBreak PRO MCCB 400 Frame 25kA 4P 400A is available now for immediate purchase. Ideal for industrial power distribution applications.
Non-Returnable & Non-Cancellable
