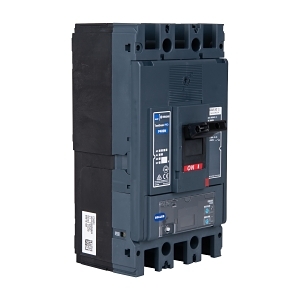

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 36kA 3P 250A Smart Electronic
Brand: NHP
SKU: P400F3250SE
Alternatively Known As: Terasaki Circuit Breaker, MCCB 250A, Smart Electronic Breaker
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Short Circuit Breaking Capacity: 36 kA
- Type of Protection: Electronic release
- Trip Curve: LSIG
- Frame Size Rating: 400 A
- Long Time Overload Protection Adjustment: 100-250 A
- Instantaneous Protection Adjustment: 750-3000 A
- Integrated Earth Fault Protection: Yes
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Suitable for Isolation: Yes
- Rated Impulse Withstand Voltage: 8 kV
- Integrated Communication Function: Yes
- Communications Protocol: Modbus TCP
- Cable Cross Section Range: 35-400 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Dimensions (H x L x W): 260mm x 145mm x 140mm
- Weight: 4.3 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated energy metering and communication functions.
- Zone selective interlocking for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Energy-efficient design reduces power loss and enhances system reliability.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 400 Frame 36kA 3P 250A Smart Electronic is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
