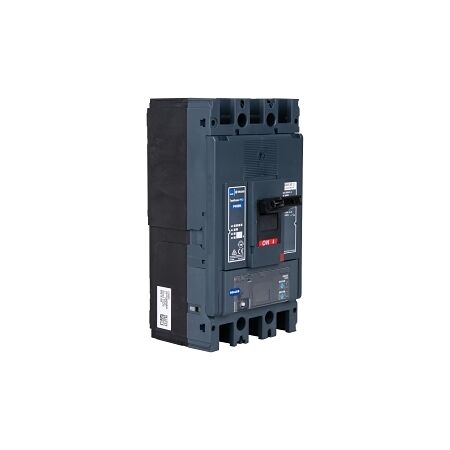

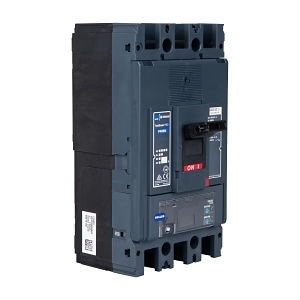

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 36kA 3P 400A Smart Electronic
Brand: NHP
SKU: P400F3400SE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 400A
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Short Circuit Breaking Capacity: 36 kA
- Trip Curve: LSIG
- Integrated Communication Function: Yes
- Rated Insulation Voltage: 800 V
- Electrical Life: 6000 cycles
- Mechanical Life: 15000 cycles
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Dimensions (H x L x W): 260mm x 145mm x 140mm
- Weight: 4.3 kg
Key Features
- Electronic release trip unit for enhanced protection.
- Integrated earth fault protection and energy metering function.
- Modbus TCP communication capability for smart monitoring.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Terasaki TemBreak PRO MCCB 400 Frame 36kA 3P 400A Smart Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
