Home/Electrical/Switchgear/Circuit Breakers/Circuit Breakers A/C/Terasaki TemBreak PRO MCCB 400 Frame 36kA 4P 250A Basic Electronic with GF

Trade Discount 25%

SKU: P400F4250BEG

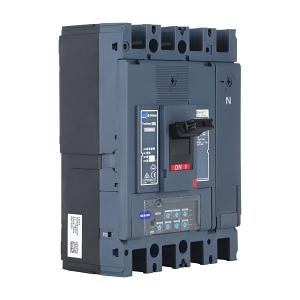

Terasaki TemBreak PRO MCCB 400 Frame 36kA 4P 250A Basic Electronic with GF

$2,879.40 List price: $3,823.50

+ −

30 Days Return Delivery Options

Weight: 5.700 kg

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 36kA 4P 250A Basic Electronic with GF

Brand: NHP

SKU: P400F4250BEG

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker with Earth Fault Protection

Technical Specifications

Rated Current: 250 A
Number of Poles: 4
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 36 kA
Rated Service Short Circuit Breaking Capacity: 36 kA
Type of Protection Trip Unit: Electronic release
Trip Curve: LSIG
Frame Size Rating: 400 A
Long Time Overload Protection Adjustment Range: 92-250 A
Instantaneous Protection Adjustment Range: 750-3000 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Short Time Withstand Current: 5 kA
Rated Impulse Withstand Voltage: 8 kV
Power Loss: 33.3 W
Mechanical Life: 15000 cycles
Max Vibration Acceleration: 19 m/s²
Cable Cross Section Range: 35-400 mm²
Dimensions (H x L x W): 260mm x 145mm x 185mm
Weight: 5.7 kg

Key Features

Electronic release trip unit for precise protection.
Integrated earth fault protection for enhanced safety.
High short circuit breaking capacity of 36 kA.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical installations in commercial buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed to operate efficiently in a wide range of temperatures and humidity levels.

Warranty Information

Standard warranty applies.

Available Now

The Terasaki TemBreak PRO MCCB 400 Frame 36kA 4P 250A Basic Electronic with GF is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
