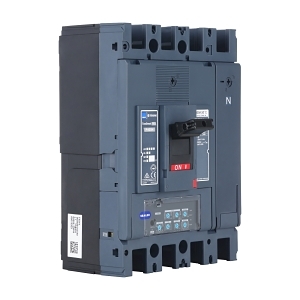

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 36kA 4P 400A Basic Electronic
Brand: NHP
SKU: P400F4400BE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 400A
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 36 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Power Loss: 85.2 W
- Mechanical Life: 15000 cycles
- Electrical Life: 6000 cycles
- Cable Cross Section Range: 35-400 mm²
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Dimensions (H x L x W): 260mm x 145mm x 185mm
- Weight: 5.7 kg
Key Features
- Electronic release trip unit for precise protection.
- Rated current of 400 A with a breaking capacity of 36 kA.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Terasaki TemBreak PRO MCCB 400 Frame 36kA 4P 400A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
