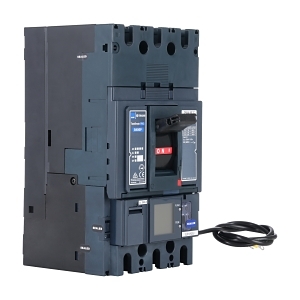

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 36kA 4P 400A Smart Electronic
Brand: NHP
SKU: P400F4400SE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Smart Circuit Breaker
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Short Circuit Breaking Capacity: 36 kA
- Trip Curve: LSIG
- Integrated Communication Function: Yes
- Integrated Earth Fault Protection: Yes
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Power Loss: 85.2 W
- Mechanical Life: 15000 cycles
- Electrical Life: 6000 cycles
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Dimensions (H x L x W): 260mm x 145mm x 185mm
- Weight: 5.7 kg
Key Features
- Electronic release trip unit for enhanced protection.
- Integrated earth fault protection and energy metering function.
- Modbus TCP communication capability for smart grid applications.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Manufacturing facilities, power distribution systems
- Commercial: Large buildings, data centers, and critical infrastructure
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Energy-efficient design reduces power consumption.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 400 Frame 36kA 4P 400A Smart Electronic is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
Non-Returnable & Non-Cancellable
