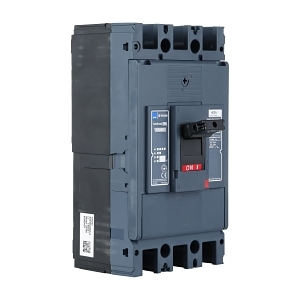

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 3P 400A Non Auto Switch
Brand: NHP
SKU: P400D3400NN
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 400A
Technical Specifications
- Rated current: 400 A
- Number of poles: 3
- Max rated operation voltage: 690 V
- Rated frequency: 50-60 Hz
- Rated insulation voltage: 800 V
- Short time withstand current: 5 kA
- Rated impulse withstand voltage: 8 kV
- Over voltage category: IV
- Power loss per pole: 28 W
- Mechanical life: 15000 cycles
- Cable cross section range: 35-400 mm²
- Rated surrounding temperature: 60 °C
- Maximum operating temperature: 70 °C
- Dimensions (H x L x W): 260mm x 145mm x 140mm
- Weight: 5.4 kg
Key Features
- Rated current of 400 A with 3 poles.
- Non auto-switch type of protection.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical panels in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high performance in various environmental conditions.
Warranty Information
Standard warranty applies.
Available Now
The Terasaki TemBreak PRO MCCB 400 Frame 3P 400A Non Auto Switch is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
